How to use Docker to build a Self-Host GitLab and GitLab Runner

How to use Docker to build a Self-Host GitLab and GitLab Runner

Recently, due to the team demand to replace Gerrit, I used docker to build a self-host GitLab and GitLab Runner for the company. One of the points mentioned here is GitLab Runner is a plug-in to help GitLab run CI, a bit like Jenkins Slave Node, used to cascade GitLab CI.

This is mainly divided into three parts

  1. Build GitLab

  2. Build and connect GitLab Runner

  3. Set up auto backup and restore

Build GitLab

Step 1:Pull official image

docker pull gitlab/gitlab-ce

Step 2:Create docker-compose.yml

Create a docker-compose.yml and replace {host_ip} to the actual IP address of the server.

version: "3.6"
    image: 'gitlab/gitlab-ce'
    container_name: 'gitlab'
    restart: always
    hostname: {host_ip}
        external_url 'http://{host_ip}:9090'
        gitlab_rails['gitlab_shell_ssh_port'] = 2224
      - gitlab-network
      - '80:80'
      - '443:443'
      - '9090:9090'
      - '2224:22'
      - '/srv/gitlab/config:/etc/gitlab'
      - '/srv/gitlab/logs:/var/log/gitlab'
      - '/srv/gitlab/data:/var/opt/gitlab'

    name: gitlab-network

Step 3:Start GitLab

docker-compose up --build --abort-on-container-exit

At first time to start GitLab, you need to wait 3 or 5 mins. After that, you could open browser and typing {host_ip}:9090 to connect to your GitLab to reset the password. The default username is root .

Build and connect GitLab Runner

At this step, you need to prepare another server for GitLab Runner. Because when GitLab Runner clone your repo that will parse issue for localhost. I am not sure how to fix this, it may due to I used dind(docker in docker) with GitLab Runner. By the way, GitLab could connect to multiple Runner and Runners could host at same server. Just remember to name different container name and mount a different volume.

Step 1:start GitLab Runner

Replace {runner-name} to your container name.

docker pull gitlab/gitlab-runner
docker run -d --name {runner-name} -v /var/run/docker.sock:/var/run/docker.sock -v /srv/{runner-name}/config:/etc/gitlab-runner --rm gitlab/gitlab-runner

Step 2:Find registration token

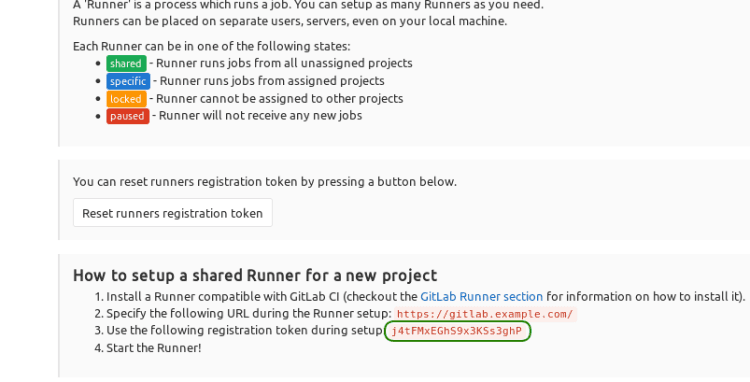

After step 1, you could go to GitLab website to find Runner Registration Token which locate at Admin Area > Overview > Runners .

Step 3:

Get the token from step2 to replace {registration-token} below and run. {gitlab-ip} replace to GitLab Server IP address. {runner-name} replace to the container name which Runner want to be connected.

docker exec -it {runner-name} gitlab-runner register -n --url http://{gitlab-ip}:9090 --registration-token {registration-token} --clone-url http://{gitlab-ip}:9090 --executor docker --docker-image "docker:latest" --docker-privileged

Setup auto backup and restore


Edit /srv/gitlab/config/gitlab.rb and add some setting. Here is my configuration to backup to AWS S3. If you want another backup place like GCP or Local, you could refer official website.

gitlab_rails['backup_keep_time'] = 86400

gitlab_rails['backup_upload_connection'] = {
  'provider' => 'AWS',
  'region' => 'us-west-1',
  'aws_access_key_id' => {access key id},
  'aws_secret_access_key' => {secret access key}
gitlab_rails['backup_upload_remote_directory'] = 'gitlab'

When you finish, it needs to let GitLab reload the new configuration.

docker exec -t gitlab-master gitlab-ctl reconfigure

This command will generate backup files and upload to AWS S3.

docker exec -t gitlab-master gitlab-rake gitlab:backup:create


  1. According to the docker-compose.yml at the first step to restart GitLab

  2. While GitLab is ready, you could download backup files from S3 to /srv/gitlab/data/backups . aws s3 cp {s3 backup file url} {backup file name}

  3. Finally, operate restore command. docker exec -it gitlab-master gitlab-rake gitlab:backup:restore If you have multiple backup files at the folder then you need to specify which backup file you want to use to restore. docker exec -it gitlab-master gitlab-rake gitlab:backup:restore BACKUP={prefix backup file name before gitlab_backup.tar}


The last thing you need to do is create a cron job to auto backup your GitLab. I use the Linux cron to handle this. I set a job to execute backup instruction at every midnight on Friday.

$ crontab -e
0 0 * * FRI docker exec -t gitlab-master gitlab-rake gitlab:backup:create
